OpenAPI Spec Docs

TinaDocs includes features to auto-generate docs pages based on an OpenAPI spec.

You can also choose to use the same components to create API pages manually.

Upload a Specification

There's a unique collection for storing OpenAPI specifications, and they can be managed independently.

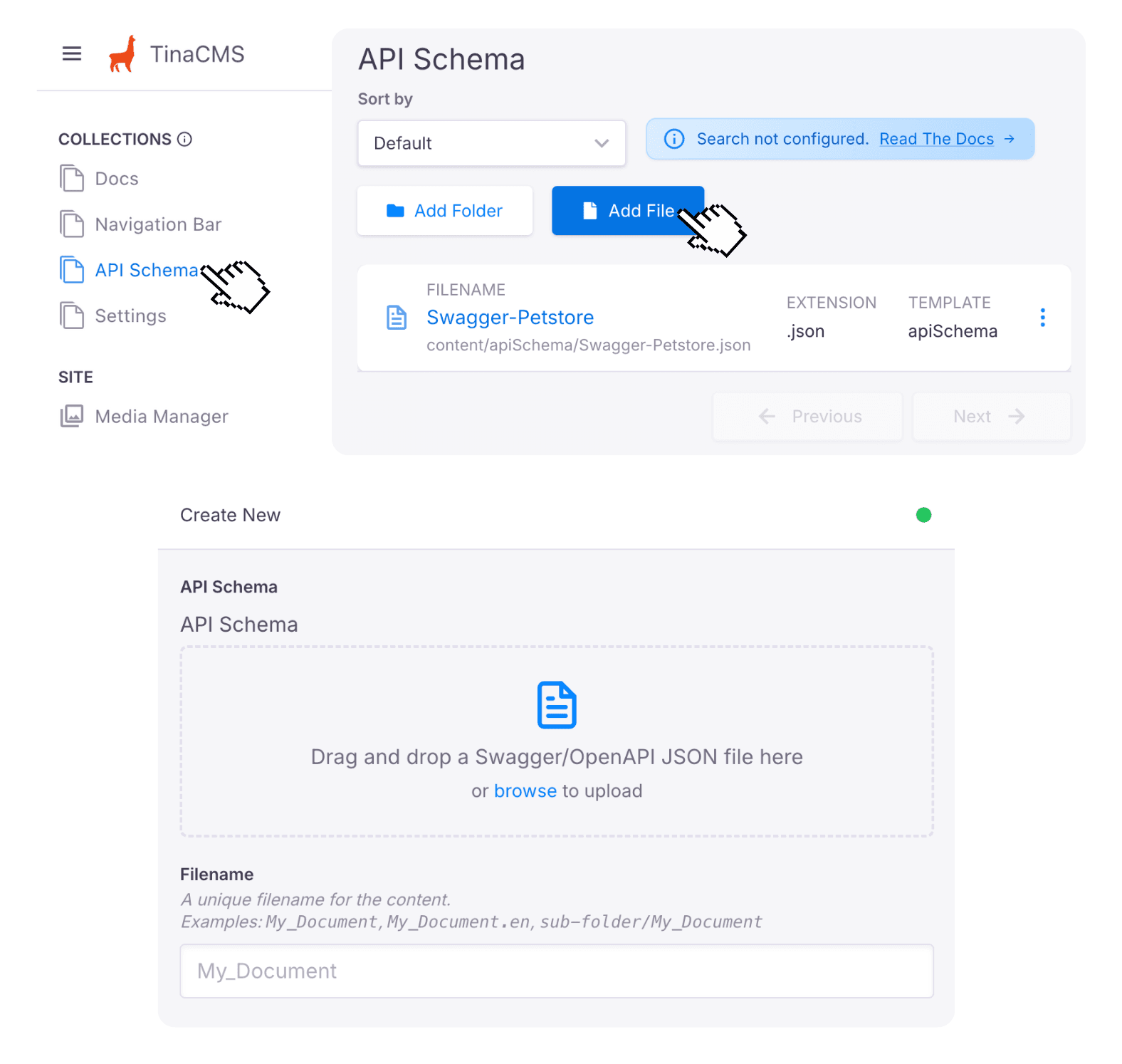

Figure: Uploading a spec via the API Schema collection

Using Specification Data

You can read from the specification inline via the API Reference component or generate sections of the nav-bar based on available routes.

Inline

Select a schema from the dropdown, and all routes will be shown – you can further select a singular route to be used for the component.

Figure: Selecting a specific endpoint from the API Reference component

Page Generation

You can generate entire directories to match your spec – marked and colour coded based on route.

1. Create a Tab with the “API Tab” Template.
2. Create a Supermenu Group with the “Group of API References” Template.
3. Choose the spec to be used, and check endpoints to be included.
4. Press save for generation.

Figure: Generating a menu group and pages from a specification

If you have any “Group of API References” with checked options in the Navbar settings, saving will regenerate the documents.
